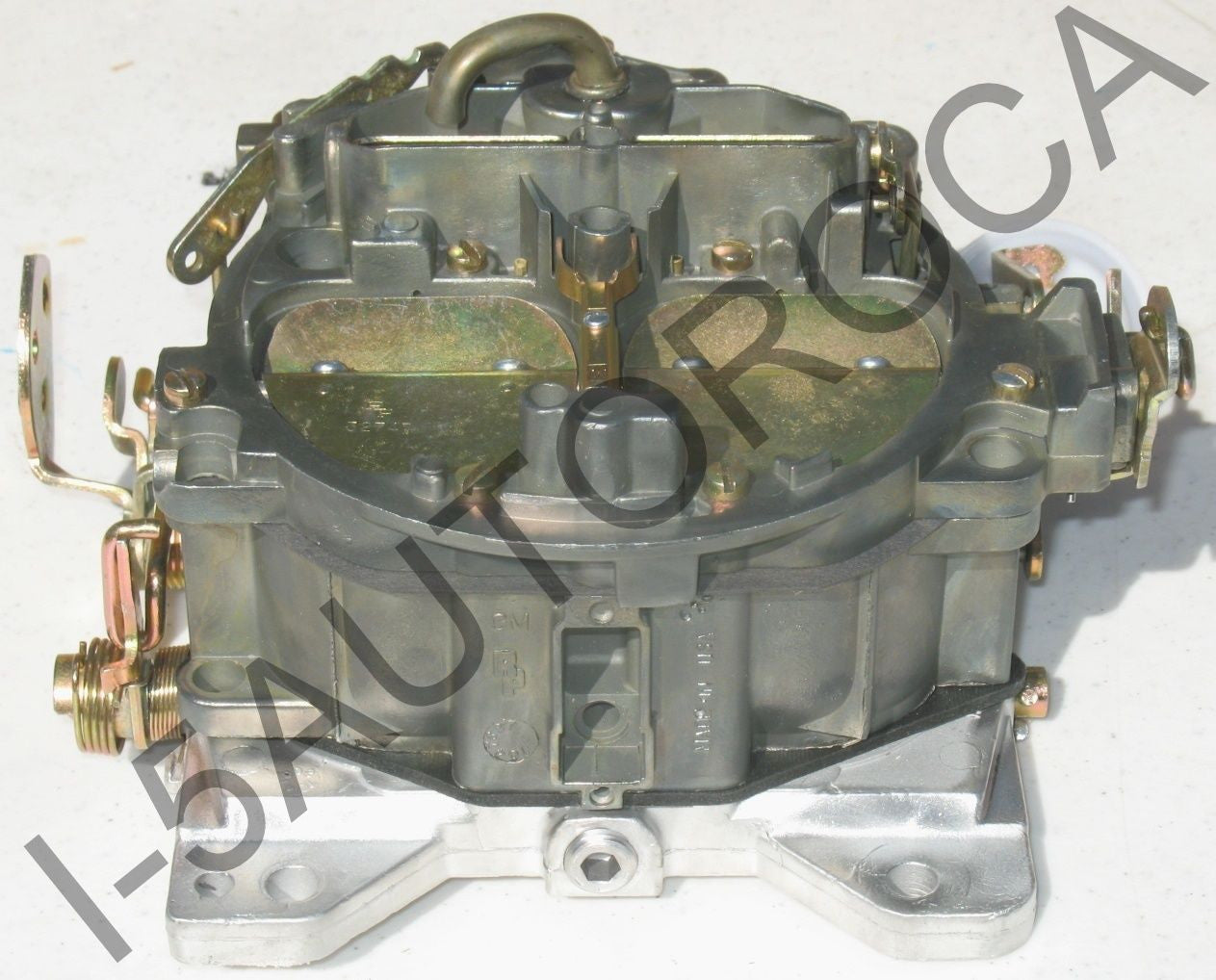

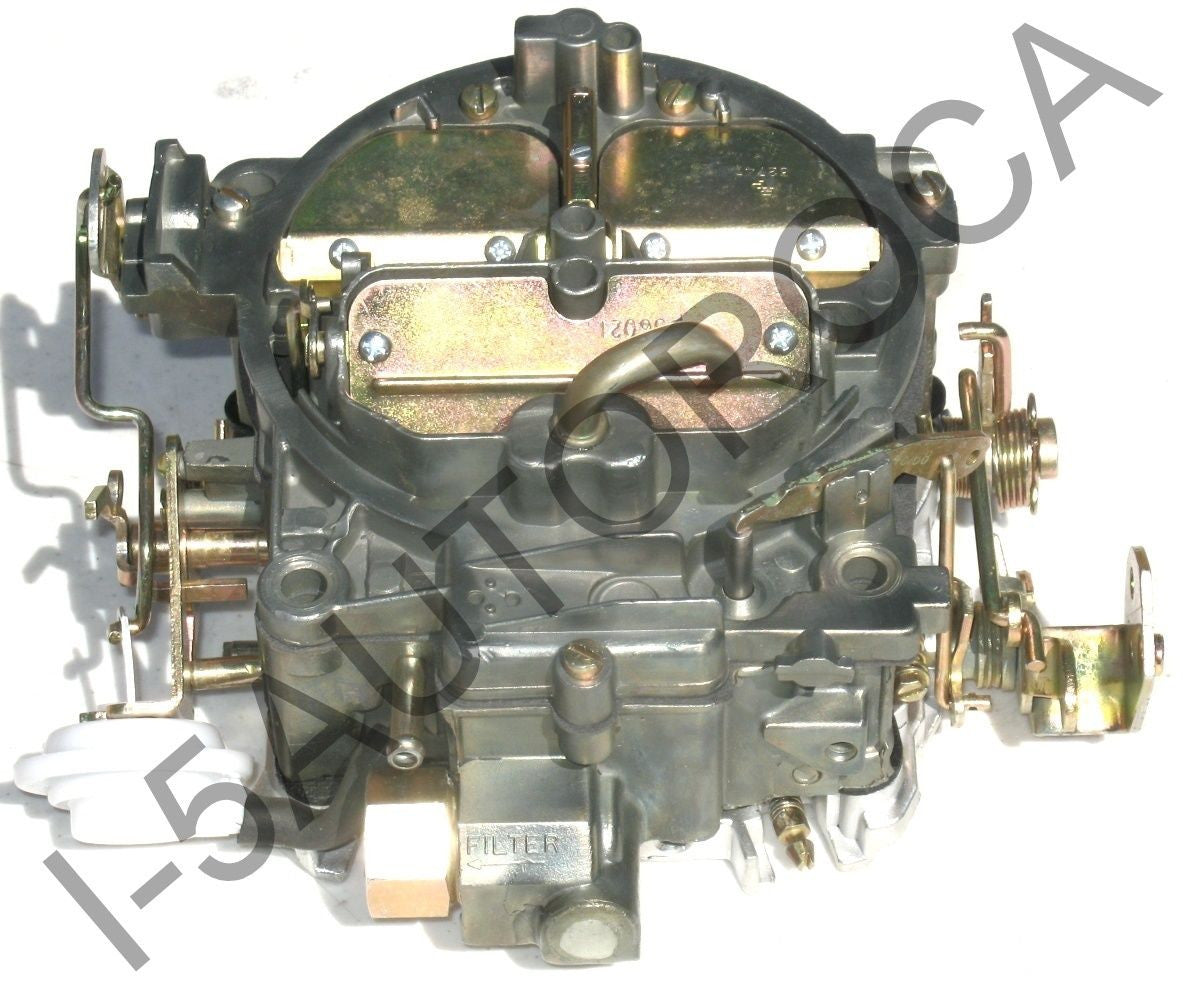

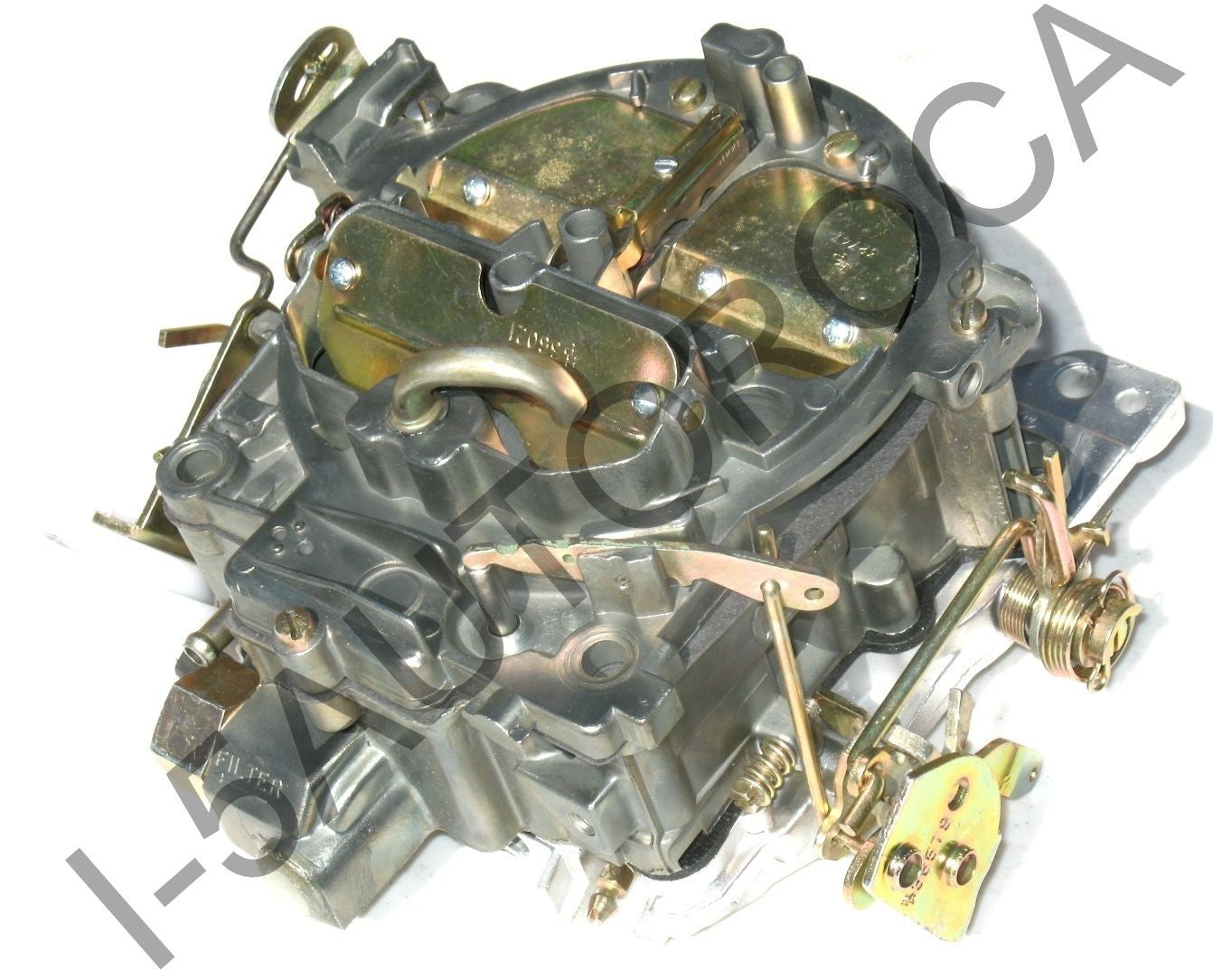

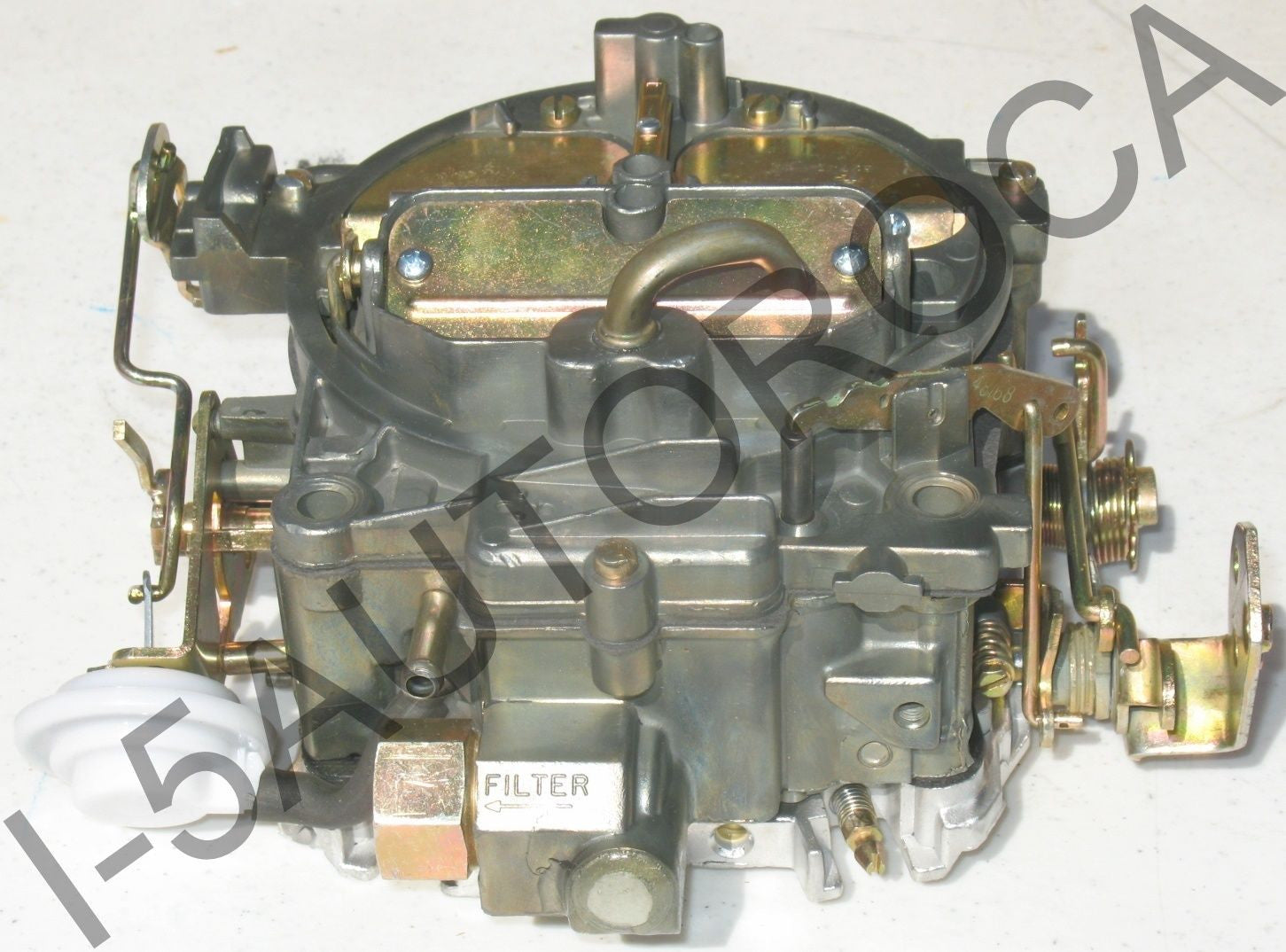

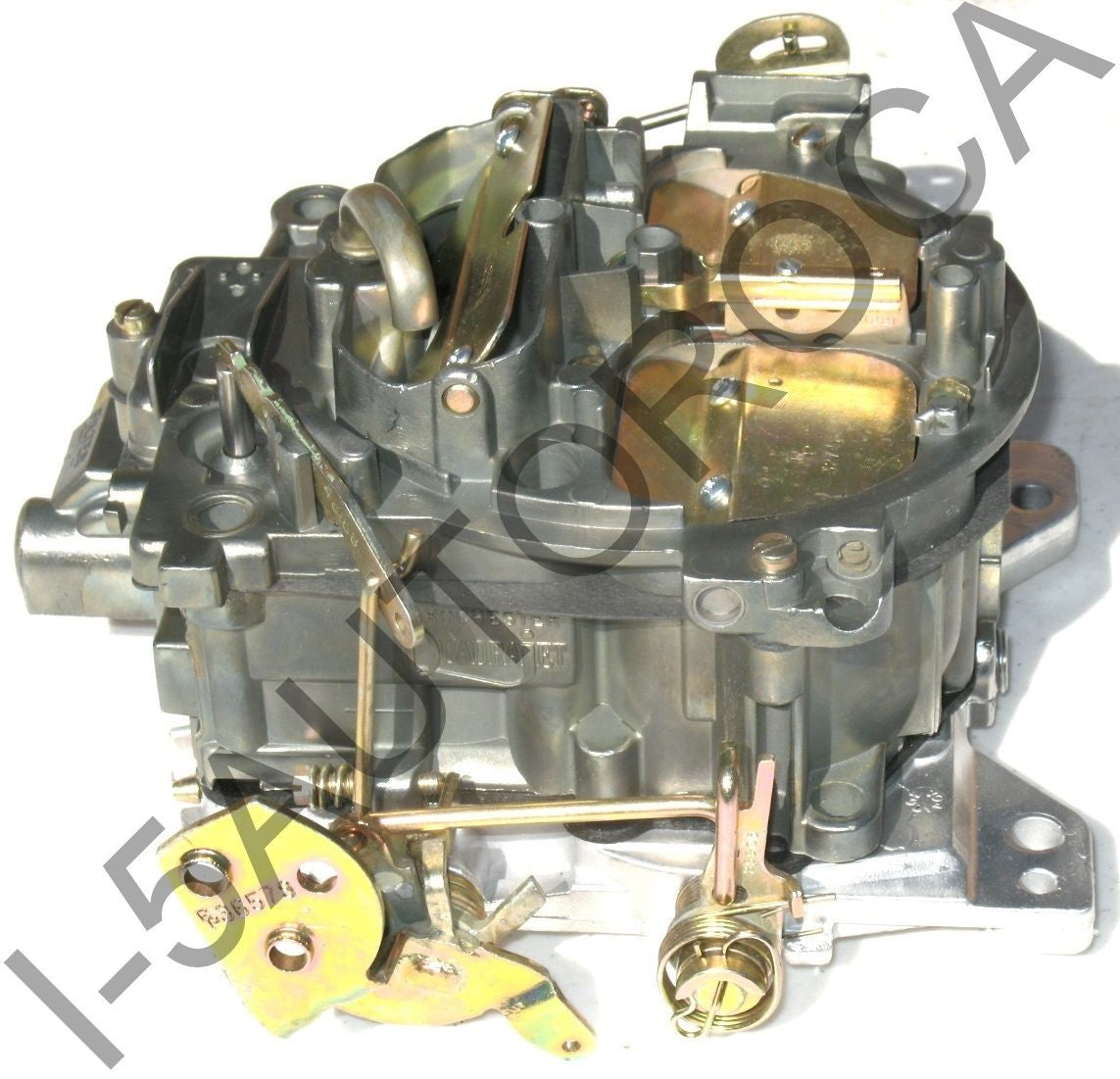

MARINE CARBURETOR ROCHESTER QUADRAJET MERC 305 5.0L MIE 230 17080564 DICHROMATE

4 BARREL ROCHESTER QUADRAJET 4MV MARINE CARBURETOR FOR MIE 230 V8 5.0 Liter ENGINE


Rochester 4 Barrel Quadrajet With
MECHANICAL or MANIFOLD CHOKE
For 8 Cylinder MIE 230 Mercury Marine 5.0 Liter / 305 CID Engine Applications.

These carburetors where assembled using only the highest quality components, They feature: All new parts and gaskets including brand new choke pull-off, float, needle and seat, castings have been chemically dyed with dichromate they are not painted, brass bushings in the throttle shaft eliminate vacuum leaks, re-finished base, yellow zinc plating on linkages and hardware to prevent corrosion and the casting plugs are sealed with epoxy to prevent leak-down into the intake manifold.

FOR MERCURY MARINE APPLICATIONS
THE NUMBERS BELOW ARE FOR REFERENCE ONLY:

IT REPLACES:

17080564

And Mercruiser #’s

1347-8290A1, 1347-9661A3

REPLACES OTHER PART NUMBERS AS WELL

This is a service replacement carburetor built and calibrated to replace the part numbers listed above, these numbers are for reference only and are not stamped on this carburetor

OUR CARBURETORS ARE FLOW BENCH TESTED

Also available for 4.3, 5.0, 5.7, 7.4 ,8.2 Liter Marine Engines
And for OMC, Crusader, Volvo-Penta, Pleasurecraft and many more.
